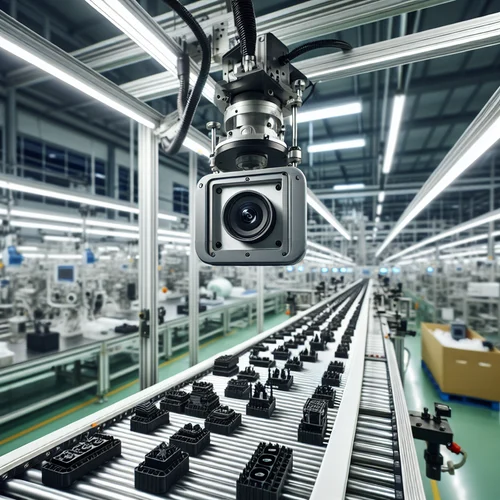

AI Vision Inspection Camera

High-Speed Edge AI Defect Detection & Smart Automated Quality Assurance Device Engineered by SunBio IT Solutions in Bengaluru.

Enquire Now WhatsApp WhatsApp

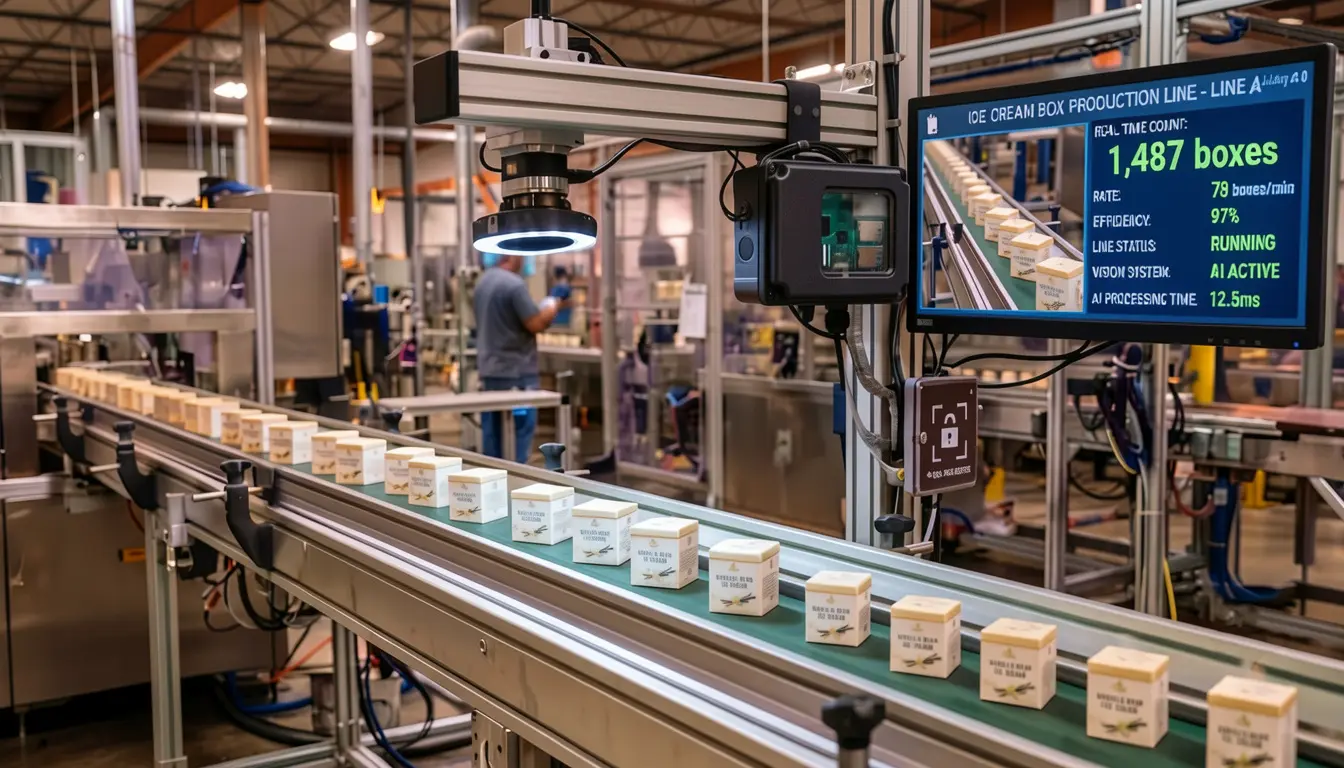

AI vision inspection camera for industrial quality control

Automated Quality Control Through Deep Learning

The SunBio AI Vision Inspection Camera is an intelligent, high-resolution machine vision device powered by on-board edge AI processors. Built by SunBio IT Solutions in Bengaluru, it eliminates manual visual inspection bottlenecks by performing lightning-fast defect detection, surface anomaly identification, dimensional gauging, and barcode verification directly on high-speed conveyor lines.

Designed for rigorous industrial manufacturing environments, electronics assembly, packaging, and automotive plants, this smart camera integrates deep learning models to reliably separate defective products from compliant ones in milliseconds. It communicates inspection results directly with PLCs and cloud dashboards for complete traceability and statistical process control.

Key Features & Technical Capabilities

Edge AI Processing

Executes complex convolutional neural networks locally on-device for real-time inference without cloud latency.

High-Resolution Imaging

Equipped with industrial shutter sensors delivering crystal-clear image capture for fast-moving production lines.

Rugged Industrial IP67

Sealed aluminum enclosure resistant to dust, water jets, oil mist, and harsh factory cleaning agents.

Multi-Protocol Integration

Supports Modbus TCP, Ethernet/IP, PROFINET, and digital I/O for direct PLC rejection sorting.

Integrated LED Illumination

Customizable stroboscopic ring lights and polarizing filters eliminate glare and ensure consistent lighting.

Easy Training Interface

User-friendly software workflow allowing operators to train new product variants with just a few sample images.

Live Edge AI Tracking & Bounding Box Demonstration

See the SunBio AI Vision Inspection Camera in action on a high-speed production line. The embedded Neural Processing Unit (NPU) tracks items in real-time, instantly drawing precision bounding boxes to evaluate conformity, classify objects, and trigger automated sorting without cloud latency.

How Real-Time AI Tracking Works:

1. High-Speed Object Detection

As items traverse the conveyor, the high-resolution industrial sensor captures continuous frames. The onboard NPU identifies products instantly.

2. Dynamic Bounding Box Overlay

The system overlays real-time bounding boxes and confidence scores, monitoring dimensional accuracy and highlighting surface variances instantaneously.

Technical Specifications

Camera Resolution High-definition CMOS sensor (options up to 5MP / 4K Ultra-HD)
Processor & NPU Embedded Quad-Core Industrial ARM CPU with dedicated Neural Processing Unit (NPU)
Frame Rate Up to 60+ frames per second at full resolution
Lens & Lighting C-mount interchangeable lens options with built-in programmable LED strobe control
Communication & I/O Gigabit Ethernet, RS-232, 4x Optically isolated inputs, 4x High-speed outputs
Power Supply 24V DC industrial power supply
Enclosure Rating IP67 rugged anodized aluminum housing
Operating Temperature 0°C to +50°C (32°F to 122°F)

Frequently Asked Questions

Get answers to common queries about the AI Vision Inspection Camera.

The camera uses deep learning to detect surface scratches, cracks, dents, color discrepancies, missing components, assembly errors, incorrect labeling, and dimensional out-of-tolerance parts.

Training is straightforward using our intuitive software suite. Operators simply capture a small set of good and defective sample images, and the system automatically trains the AI model within minutes.

Yes. Equipped with high-speed digital output triggers and industrial communication protocols, it can instantly actuate pneumatic pushers, sorters, or PLC alarms when a defect is detected.

No. All AI inference and image processing occur directly on the smart camera's embedded NPU, ensuring real-time performance without dependency on cloud connectivity.

Our smart inspection camera seamlessly integrates with major industrial automation brands including Siemens, Allen-Bradley (Rockwell), Omron, Schneider Electric, and Mitsubishi via Modbus TCP, Ethernet/IP, PROFINET, and discrete 24V I/O lines.

The device features built-in programmable stroboscopic LED ring lights, multi-angle polarization filters, and auto-exposure compensation algorithms that dynamically adapt to ambient light shifts, eliminating shadows and reflection glare.

Yes. Every inspection event, including timestamp, pass/fail status, high-resolution anomaly snapshots, and confidence scores, is logged locally and can be synchronized via MQTT or REST APIs to enterprise SCADA, MES, or cloud quality dashboards.

Physical mounting and electrical connection typically take under an hour. Training the custom AI model with initial sample parts and integrating PLC rejection triggers can usually be completed within half a day.
